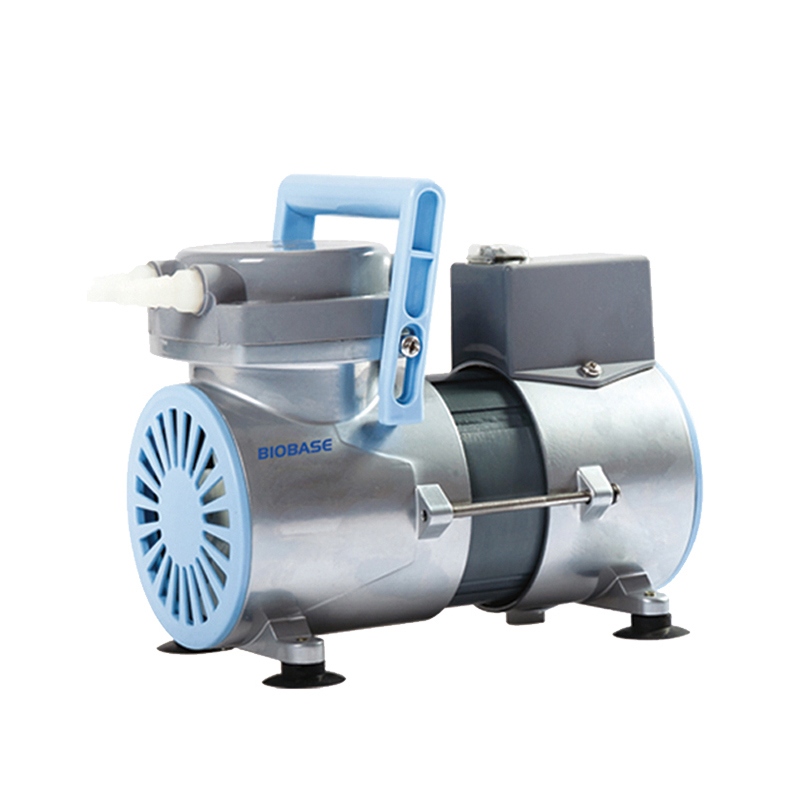

Biobase GM-0.20 Laboratory Vacuum Pump
Technical Parameters:
|
Model |
GM-0.20 |
GM-0.5II |
GM-0.5 |
GM-0.33II |
GM-1.0 |
|
Pump Head |
1 |
2 |
1 |
1 |
2 |
|
Speed of Evacuation |
15L/Min |
30L/Min |
20L/Min |
60L/Min |
|
|
Ultimate Pressure |
0.075Mpa |
0.095Mpa |
0.08Mpa |
||
|
Vacuum |
250mbar |
50mbar |
200mbar |
||
|
Pressure |
30 psi positive or negative pressure |
Negative pressure |
30 positive, positive or negative pressure |
Negative pressure |
30 positive, positive or negative pressure |
|
Inlet |
φ6mm |
||||
|
Outlet |
φ6mm |
Silencer |
φ6mm |
Silencer |
φ6mm |
|
Working Temp. |
7~40℃ |
||||
|
Body Temp. |
<55℃ |
||||
|
Noise Level |
<60dB |
||||
|
Motor Power |
75W |
160W |
|||
|
Power Consumption |
AC110/220V±10%, 50/60Hz |
||||
|
Diaphragm |
NBR |
||||
|
Valves |
/ |
NBR |
|||
|
Net Weight(kg) |
4 |
10 |
6.6 |
6.2 |
10 |
|
Gross Weight(kg) |
4.44 |
10.25 |
8.4 |
8.17 |
10.38 |
|
External Size(L*W*H)mm |
195*98*156 |
300*120*235 |
210*160*235 |
215*120*235 |
300*160*235 |
|
Package Size(L*W*H)mm |
325*210*230 |
410*230*345 |
400*220*330 |
355*215*375 |
415*255*340 |
Features:
1. Oil free, clean exhausted air by built- in filter.
2. Automatic cooling exhaust system ensures 24h operation continuously.
3. The pressure adjustable design can satisfy a certain range of vacuum and gas velocity.(This function does not apply to model GM-0.20)
4. TEFLON surface treatment, anti-gas corrosion.
5. Anticorrosive vacuum pump: GM-0.33IIP, GM-0.5P, GM-0.5IIP, GM-1.0P.
