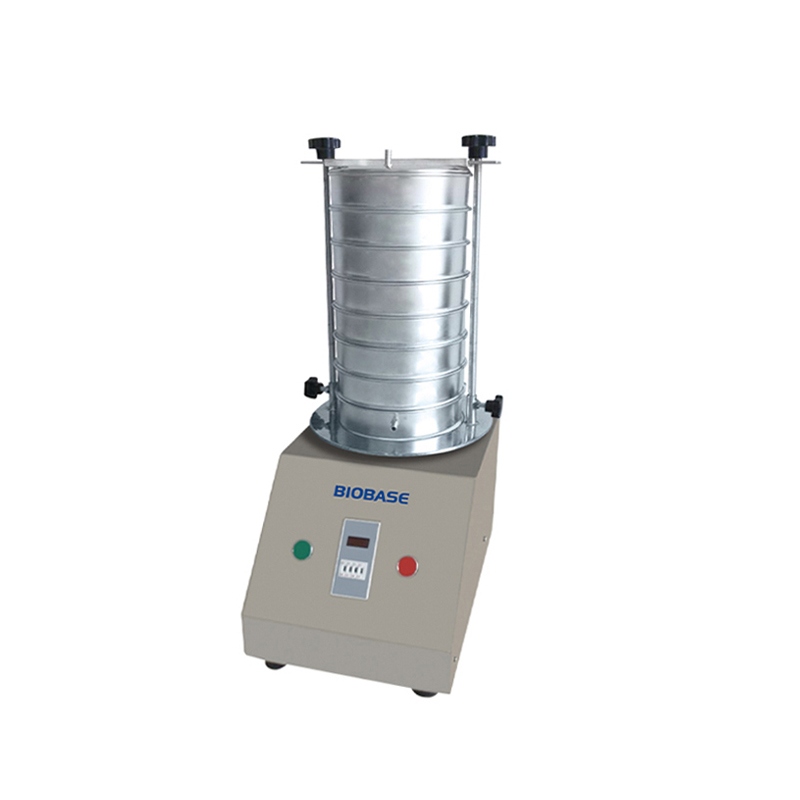

Screen sieve for BK-TS300 dia 300 mm 7 mesh, 10 mesh, 30 mesh, 40 mesh, 120 mesh, 180 mesh
Technical Parameters:
|
Model |
BK-TS200 |
BK-TS200X |
BK-TS300 |
||
|
Working Layer |
1~8 layers |
||||
|
Screen Mesh Size |
0.003~12.5mm |
||||
|
Diameter |
200mm |
300mm |
|||
|
Material |
Stainless steel 304 |
||||
|
Timing Range |
0~99min59s |
||||
|
Speed |
1440r/min |
||||
|
Power Consumption |
125W |
180W |
|||
|
Power Supply |
AC220V, 50Hz(Standard); 220V, 60Hz; 110V, 60Hz(Optional) |
||||
|
Standard Accessory |
Lid and base(Except BK-TS300) |
||||
|
External Size(W*D*H)mm |
400*300*370 |
390*340*340 |
435*390*370 |
||
|
Package Size(W*D*H)mm |
460*380*430 |
470*410*570 |
530*470*420 |
||
|
Net Weight(kg) |
33 |
30 |
40 |
||
|
Gross Weight(kg) |
35 |
40 |
42 |
||
Screen Mesh:
|
Number of Mesh |
Aperture(mm) |
Number of Mesh |
Aperture(mm) |
Number of Mesh |
Aperture(mm) |
|
2 |
12.5 |
45 |
0.4 |
220 |
0.065 |
|
3 |
8 |
50 |
0.355 |
240 |
0.063 |
|
4 |
6 |
55 |
0.315 |
250 |
0.061 |
|
5 |
5 |
60 |
0.28 |
280 |
0.055 |
|
6 |
4 |
65 |
0.25 |
300 |
0.050 |
|
8 |
3 |
70 |
0.224 |
320 |
0.045 |
|
10 |
2 |
75 |
0.2 |
325 |
0.043 |
|
12 |
1.6 |
80 |
0.18 |
340 |
0.041 |
|
14 |
1.43 |
90 |
0.16 |
360 |
0.040 |
|
16 |
1.25 |
100 |
0.154 |
400 |
0.0385 |
|
18 |
1 |
110 |
0.15 |
500 |
0.0308 |
|
20 |
0.9 |
120 |
0.125 |
600 |
0.026 |
|
24 |
0.8 |
130 |
0.112 |
800 |
0.022 |
|
26 |
0.71 |
140 |
0.105 |
900 |
0.020 |
|
28 |
0.68 |
150 |
0.100 |
1000 |
0.015 |
|
30 |
0.6 |
160 |
0.096 |
1800 |
0.010 |
|
32 |
0.58 |
180 |
0.09 |
2000 |
0.008 |
|
35 |
0.50 |
190 |
0.08 |
2300 |
0.005 |
|
40 |
0.45 |
200 |
0.074 |
2800 |
0.003 |
Features:
1. Screen mesh size range: from 2 mesh to 2800 mesh.
2. Timing range: 0~99min59s, time can be set from seconds to hours freely.
3. Typically requires 50~150g of sample material.
