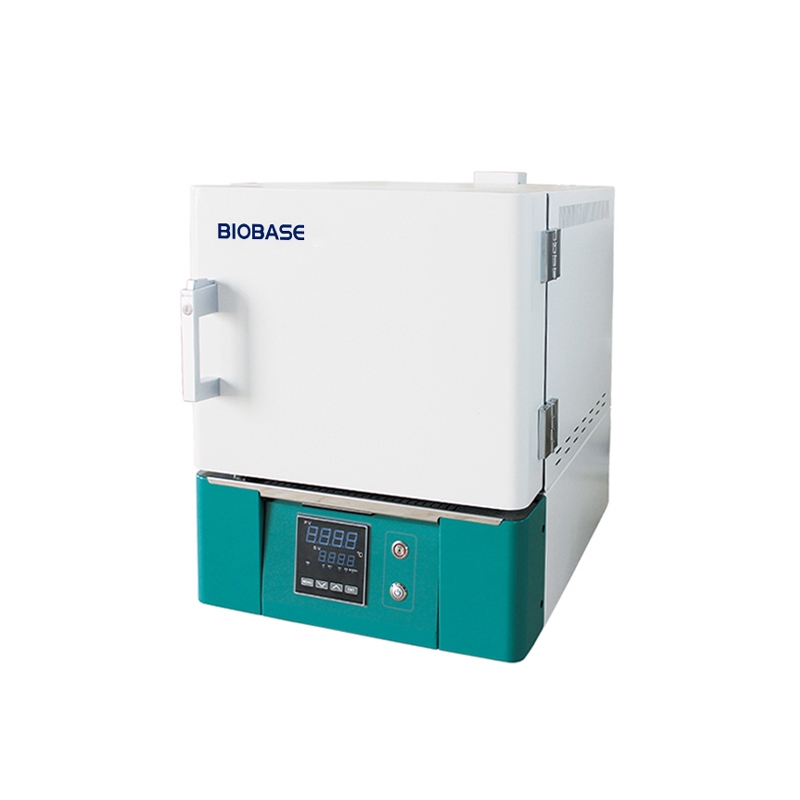

Lab 1200 Degree Celsius Muffle Furnace BIOBASE MC2.5-12
Technical Parameters:
|
Model |
MC2.5-12 |
MC5-12 |
MC10-12 |
|
Max Temp. |
1200°C |
||
|
Temp. Rising Time(Empty) |
≤30min | ||
|
Temp. Accuracy |
±1°C |
||
|
Capacity(L) |
2 |
7 |
16 |
|
Power(KW) |
1.5 |
3 |
6 |
|
Power Supply |
Standard: AC220V, 50/60Hz; Optional: AC110V, 50/60Hz |
Standard: AC380V, 50/60Hz; Optional: AC220V, 50/60Hz |
|
|
Internal Size(W*D*H)mm |
120*200*80 |
200*300*200 |
250*400*160 |
|
External Size(W*D*H)mm |
450*685*600 |
530*785*640 |
600*895*700 |
|
Packing Size(W*D*H)mm |
570*770*740 |
650*870*780 |
720*980*845 |
|
Gross Weight(kg) |
37 |
50 |
96 |
Features:
1. The fully mirrored stainless steel furnace mouth remains unchanged despite long-term use.
2. The high-quality, double-insulated ceramic liner ensures stable performance.
3. The vacuum-formed polycrystalline mullite fiber furnace chamber provides efficient heat preservation.
4. The high-precision microcomputer controller and precision sensors are perfectly integrated to ensure precise temperature control.
5. The double-shell design features an air jacket for insulation and dual air ducts, ensuring excellent ventilation and low shell temperature rise.
6. The power connection for MC10-12 is through the air switch
