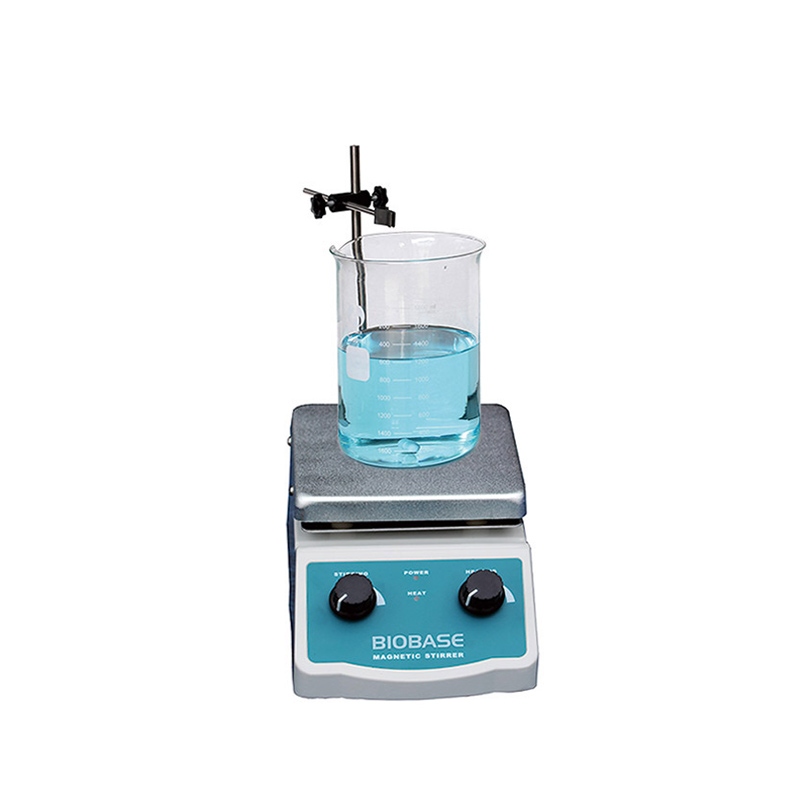

Hotplate Magnetic Stirrer Biobase BS-4H
Technical Parameters:
|
Model |
BS-2H |
BS-3H |
BS-4H |
BS-4HC |
|
Work Plate Size |
120*120mm |
170*170mm |
190*190mm |
|
|
Plate Load(kg) |
3 |
10 |
||
|
Work Plate Material |
Cast Aluminum with surface spraying |
Ceramic |
||
|
Max. Stirring Capacity |
2L |
5L |
||
|
Speed Range |
100~2000rpm |
200~2000rpm |
||
|
Heating Temp |
380°C |
350 °C |
||
|
Power Consumption |
180W |
500W |
600W |
|
|
Power Supply |
AC110/220V±10%, 50/60Hz |
|||
|
Standard Accessory |
Adjustable rack, stirrer bar; PT100 sensor(only for BS-4HC) |
|||
|
External Size(W*D*H)mm |
200*120*90 |
265*185*190 |
320*190*125 |
|
|
Package Size(W*D*H)mm |
250*180*120 |
280*210*220 |
390*240*230 |
|
|
Net Weight(kg) |
1.9 |
2.2 |
5 |
|
|
Gross Weight(kg) |
3 |
3.4 |
6 |
|
Features of BS-2H/3H:
1. Cast Aluminum with surface spraying plate.
2. Max. Temp.: 380°C, max. speed: 2000rpm.
3. Heating and stirring can proceed simultaneously.
4. Heating power and stirring speed is steplessly adjusted.
Features of BS-4H/4HC:
1. Ceramic plate.
2. PT100 sensor is standard for BS-4HC.
3. With the adjustable rack and stirrer bar.
4. Max. Temp.: 380°C, max. speed: 2000rpm.
5. Heating and stirring can proceed simultaneously.
6. Heating power and stirring speed is steplessly adjusted.
7. Enclosed hot plate with flame protection, fast warm-up and durability.
